Drainage Solutions in Jacksonville, FL: NDS Certified Design & Install
Most "drainage contractors" in Northeast Florida are landscapers who install drainage parts on the side. Gutter Pro is one of the only NDS Certified Professional Drainage Contractors in the metro — meaning we design with hydraulic math, install with engineered materials (virgin HDPE, Schedule 40 PVC, never recycled corrugated), and stand behind the work with a lifetime warranty. We handle the full drainage stack: French drains, channel drains, downspout extensions, sump pumps, dry wells, and foundation drainage, with the gutter system upstream engineered as one scope.
Quick answer: which drainage system do you actually need?
- Standing water in lawn after rain → French drain or surface swale
- Water pooling at a downspout → Underground downspout extension (Schedule 40 PVC)
- Sheet flow across patio, driveway, pool deck → Channel drain at the downhill edge
- Crawlspace humidity, foundation moisture → Foundation perimeter drain (footing or slab)
- Below-grade water intrusion → Sump pump + perimeter drain feeding the pit
- Nowhere to discharge to daylight → Dry well for subsurface retention
Most properties with real drainage problems need two or three of these working together — not just one. We engineer the full system as one scope.
Decision tree: which drainage solution fits your problem?
- Where is the water?
On the lawn → next question
At a downspout → Underground downspout extension
On hardscape (patio/driveway) → Channel drain
Inside (crawl/garage) → Sump pump + perimeter drain
At the foundation wall → Foundation drainage - How long does the standing water last?
Drains in under 2 hours → probably no system needed; fix grading and gutters first
2-6 hours → French drain or swale
More than 6 hours OR recurring after every rain → Full drainage system - Is there somewhere to discharge to daylight?
Yes (lower point on the lot, swale, or street tie-in) → discharge to daylight or pop-up emitter
No → Dry well or sump pump system
Engineered Drainage vs a Landscaper Trench
The 8 systems we install

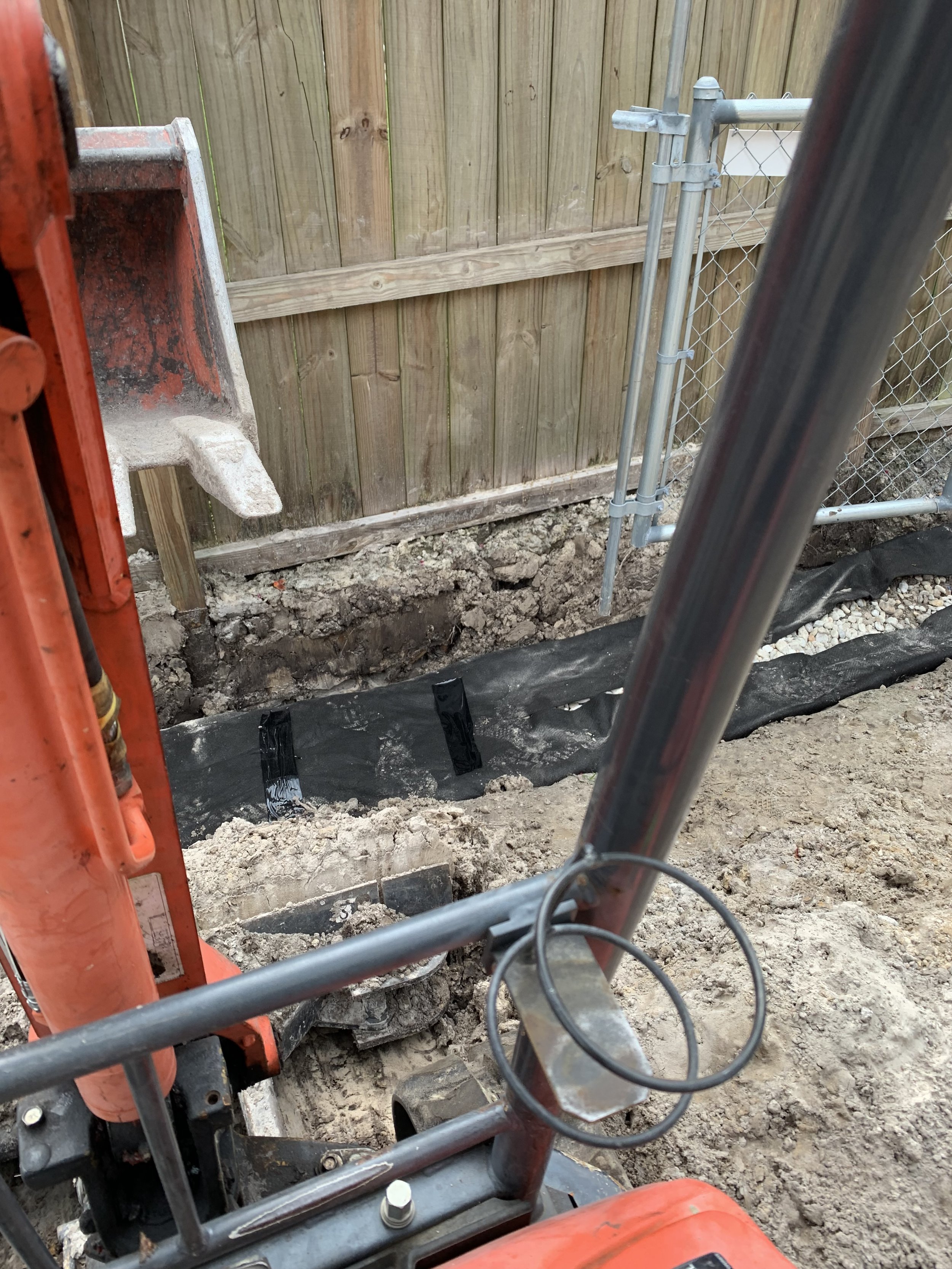

French drains
Subsurface gravel-filled trench with virgin-HDPE perforated pipe. Captures water that has soaked into the ground or sitting on the surface. The workhorse of yard drainage in NE Florida.
Yard drainage
Engineered combinations of French drains, swales, catch basins, and discharge runs that move standing water off the lawn without disturbing the existing landscape.

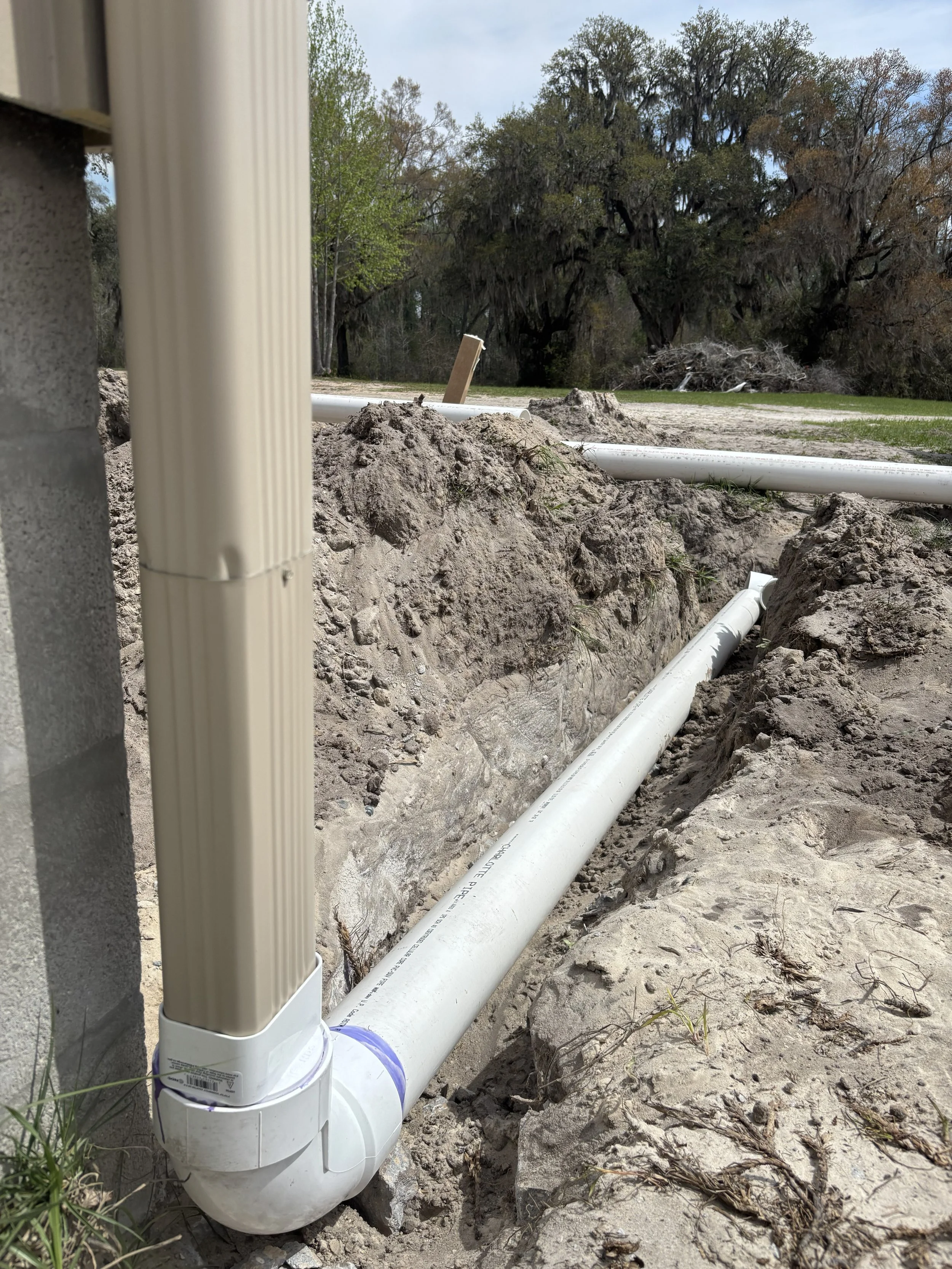

Underground downspout extensions
Schedule 40 PVC solid pipe running from each downspout to a discharge point 10+ feet from the foundation. The single highest-ROI drainage upgrade for most NE FL homes.
Channel drains
Surface-mounted grated channels at the downhill edge of patios, driveways, and pool decks. Catches sheet flow and plumbs into PVC discharge.
Sump pumps
Below-grade pit, basin, and pump system for situations where gravity discharge isn't possible — low-elevation lots, walk-out basements, crawlspace flooding.
Dry wells
Subsurface retention chamber for sites with no daylight discharge option. Designed to handle storm volume and release slowly into native soil.
Foundation drainage
Exterior footing drains or slab perimeter systems that intercept water before it reaches the foundation. The cheapest insurance against $25K+ foundation repair.
Commercial drainage
Property managers, office plazas, retail, churches, schools. Oversized PVC, stormwater compliance documentation, full project COIs and bid documentation.
5 signs your property needs drainage now
Standing water past 3 hours
Pools that don't drain within 3 hours of rain stopping. Sand topsoil saturated; impermeable subsoil holding water.
Soggy lawn between storms
Lawn that never fully dries out, especially in oak-shaded yards. Grass thinning, moss growing, mosquitoes breeding.
Mulch washed out at downspouts
Channels carved into landscaping at downspout corners. Concentrated runoff with no engineered discharge.
Foundation moisture or musty crawlspace
Damp smell, condensation on cooler surfaces, efflorescence (white mineral deposits) on interior walls.
Stucco staining or paint failure near grade
Dark streaks or paint peeling where the wall meets the soil. Splash-back or surface flow repeatedly hitting the wall.
NE Florida drainage by neighborhood / problem profile
| Area | Common problem | Typical solution |
|---|---|---|
| Mandarin, Arlington, San Jose | Spodic hardpan within 18" of grade; sand drains, hardpan doesn't | Perimeter French drain + downspout extensions |
| Riverside, Avondale, Springfield, Ortega | Heavy oak canopy + clay subsoil; standing water lingers hours | Yard drainage system, often with sump for low spots |
| Ponte Vedra, Marsh Landing, Sawgrass | High seasonal water table, salt-marsh proximity | Foundation drainage with elevated pop-up emitters |
| Nocatee, St. Johns new construction | Builder grading inadequate; first wet season reveals problems | Yard drainage + downspout extensions, often before warranty expires |
| Fleming Island, Orange Park | Clay-heavy subsoil, surface infiltration drops fast | French drain with extended #57 stone envelope |
| Atlantic Beach, Neptune Beach, Jax Beach | Brackish water table, salt-air corrosion concerns | Marine-grade materials on any metal components; PVC discharge |
| Commercial properties throughout metro | Stormwater compliance, large discharge volumes | Oversized PVC, engineered discharge to municipal stormwater |
Why NDS Certified actually means something
Most "drainage contractors" in NE Florida are landscapers, irrigation companies, or foundation repair companies who install drainage as a sideline. They install parts. They size by feel. They use whatever pipe is cheapest at the supply house.

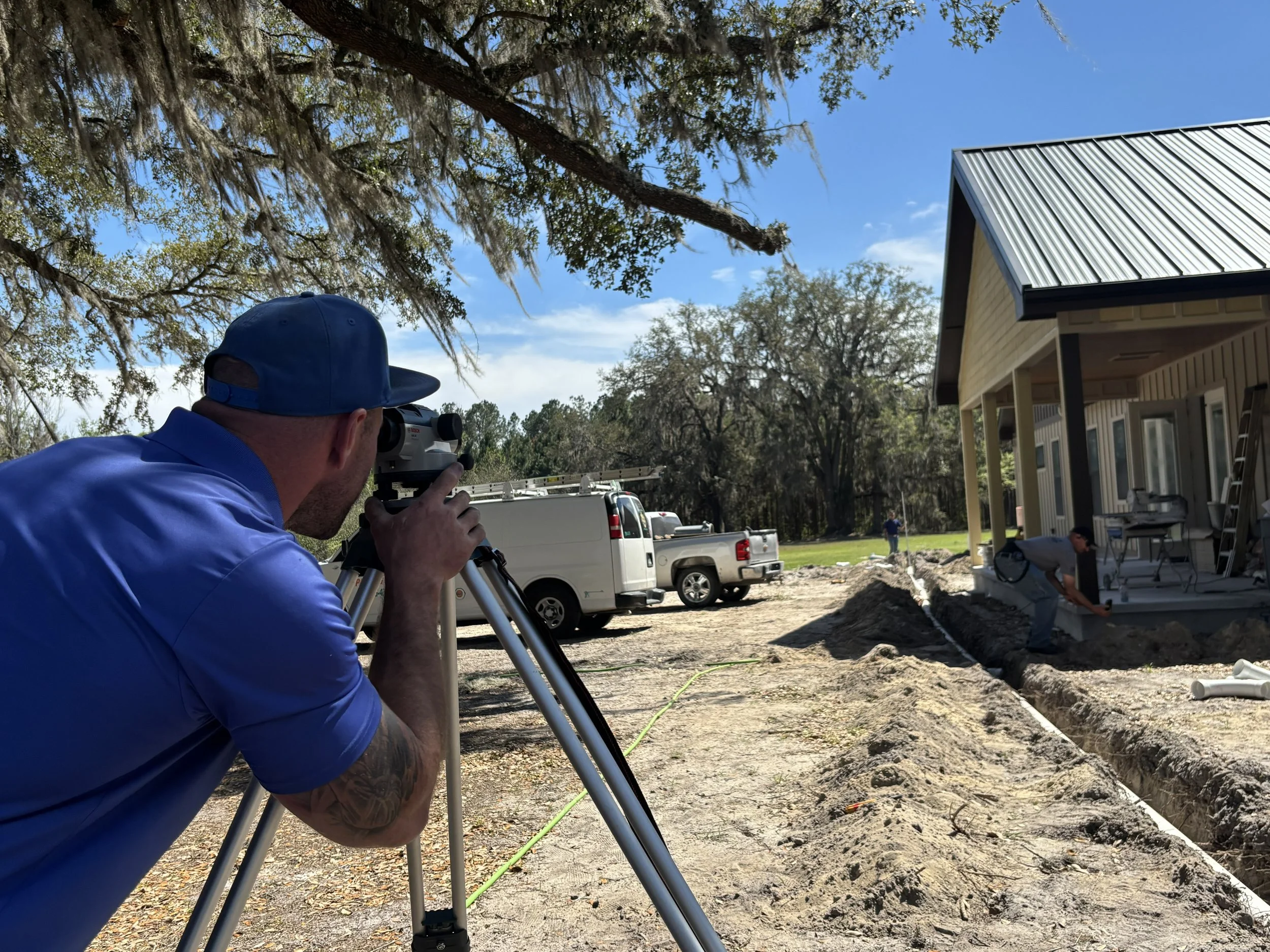

NDS Certified contractors install engineered systems. Pipe diameter sized to hydraulic load. Slope verified by laser level. Stone graded to spec. Filter fabric specified for the soil profile. Outlets designed for the site's actual elevation and discharge restrictions. NDS is the manufacturer of the engineered drainage components and their certification means we're trained on the actual design math, not just the installation steps.
The difference shows up after the third or fourth big storm — and even more so 5-10 years later, when the cheap install has clogged with silt and the NDS install is still flowing.
Materials we install — and what we never install
✓ Virgin HDPE 4-inch 8-slotted
Dual-wall corrugated, vehicle-traffic-rated. Smooth interior for flow, ribbed exterior for crush strength. The primary perforated drain channel.
✓ Schedule 40 PVC
Solid pipe for discharge runs and tie-ins. Smooth interior, full pressure capability, 50+ year service life.
✓ #57 graded stone envelope
The right size gravel for drainage flow. Doesn't bind with silt the way pea gravel or screenings do.
✓ Filter sock / geotextile fabric
Wraps the pipe to keep fine sand and roots out. Skipped on most cheap installs, costs $100-200, prevents premature failure.
✗ Recycled corrugated black pipe
Cheap. Fails in 3 years on average. Ribbed interior traps silt, thin walls collapse under soil load. We do not install this. Period.
✗ Pea gravel / screenings
Looks like drainage gravel but binds with fines within a season. Clogs the system from the inside. Wrong stone for the job.
For deeper material spec see our drainage pipe spec guide.
How a drainage install works
- Free on-site walk — Albert evaluates grading, soil, gutters, existing symptoms, discharge options. Usually scheduled within 48 hours.
- Engineered scope and written quote — pipe spec, depth, slope, fabric, stone, outlet, tie-ins. Itemized.
- Coordination with foundation contractors, waterproofing partners, landscapers, or irrigation contractors as needed.
- Excavation — trench dug to spec depth, utilities located, existing landscape protected where possible.
- Installation — virgin HDPE perforated pipe with laser-verified slope, filter fabric and #57 stone, Schedule 40 PVC discharge, daylight or pop-up emitter outlet.
- Site restoration — soil compaction, sod or seed, sprinkler tie-in coordination.
- Final walkthrough with Albert. Test discharge. Lifetime workmanship warranty.
